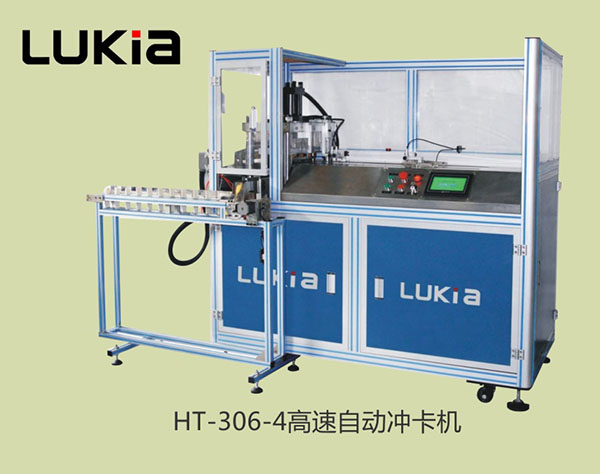

恒通製卡 HT-306-4高速自動衝卡機 產品介紹

編輯:Hengtong Card Making Equipment Co., Ltd.
日期:2018-11-17  訪問:3406

       HT-306-4高速自動衝(chong) 卡機采用PLC控製人機界麵。送料係統采用日本歐姆龍伺服電機和日本高精度滾珠絲(si) 杠及直線導軌,移動平穩,移動距離準確。使定位精度小於(yu) 0.10mm。采用專(zhuan) 業(ye) 高靈敏度光電識別裝置讀取定位標誌,定位準確可靠。意大利進口液壓泵,靜音型,大流量。液壓油缸,衝(chong) 切平穩,低噪聲。模具采用進口模具鋼製造。軟件功能強,8張卡可設置不同步距,物料變形或機械磨損仍能保證衝(chong) 切精度。衝(chong) 切速度高於(yu) 同類產(chan) 品30%。進料衝(chong) 切方式有雙模、叁模、肆模、伍模可靈活選用。是卡廠設備必備。




HTCP-306-4-A3 (3x7/8) Card Punching Machine is controlled through imported PLC, it adopts

LC industry touch screen of WeinView MT6056i by Taiwan. The material feed system adopts the imported servo motor, high-precise ball screw and plane guide imported from Japan in order to ensure smooth moving and accurate moving distance. It uses the high sensitive sensor to read the position marks to ensure accurate and reliable location. The hydraulic pump from Taiwan is featuring low noise and large flow. The quality

hydraulic valves from Taiwan and the American seals have long service life. The punching mould driven by hydraulic cylinder can work smoothly and reliably with low noise.

The punch mould is made with imported Japanese mould steel. Its software function is strong; different cards can be set into different step distances. Punching precision can be ensured even in the situation of material distortion or mechanical abrasion.



恒通製卡 Hengtong Card Making Equipment Co., Ltd.

恒通製卡設備华体汇会员登录平台官网
地址: (Add): No.12,Tongyi Road,Gutang Industrial Zone,Yiwu,CHINA

銷售熱線:(Tel): +86 579 81570170
郵箱:kevin@cnhengtong.com
QQ:
